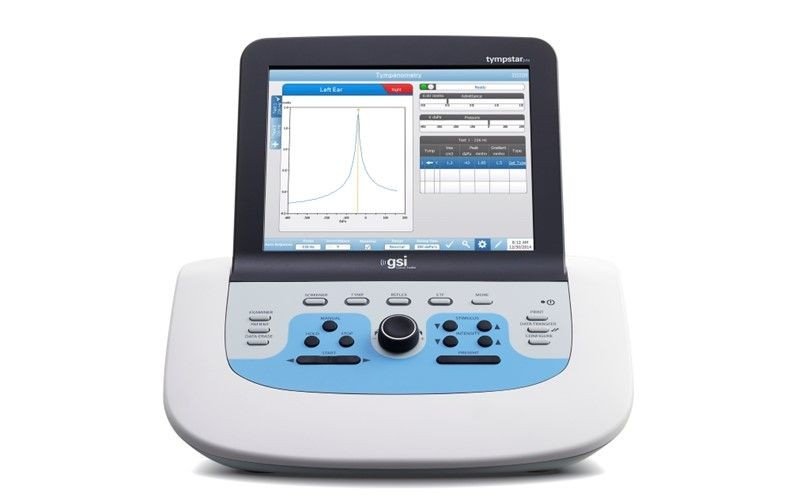

Grason-Stadler TympStar Pro
Model: TYMPSTAR-PRO
Clinical middle-ear analyzer with multi-frequency probe tones, WideBand Tympanometry, and touch-screen operation.
Key Features
- 226, 678, and 1000 Hz probe tones
- Optional WideBand Tympanometry (226-8000 Hz)
- Acoustic reflex threshold and decay testing
- Eustachian Tube Function testing (intact, perforated, patulous)
- 12-inch color touch screen with zoom function
- Auto Start on probe seal; stores last 100 sessions
For export orders outside India, shipping/freight is quoted separately at actual cost — see our Shipping Policy.
Description
The GSI TympStar Pro is a comprehensive clinical tympanometer offering tympanometry, acoustic reflex threshold/decay, and Eustachian tube function testing on a 12-inch color touch screen. Optional WideBand Tympanometry, Multi-Hz testing, and ARLT extend it for advanced middle-ear diagnostics.
Specifications
| Probe Tones | 226 Hz, 678 Hz, 1000 Hz |
|---|---|
| Pressure Range | Normal +200 to -400 daPa; Wide +400 to -600 daPa |
| Reflex Stimuli | 250, 500, 1k, 2k, 4k Hz, BBN, LBN, HBN, click |
| Reflex Intensity Range | 35 to 120 dB HL |
| Optional Tests | WideBand Tympanometry, Multi-Hz, ARLT |
| Weight | 12 lb (5.5 kg) |
| Display | 12-inch internal color touch screen |
| Compliance | IEC 60601-1, ANSI S3.39, IEC 60645-5 |
