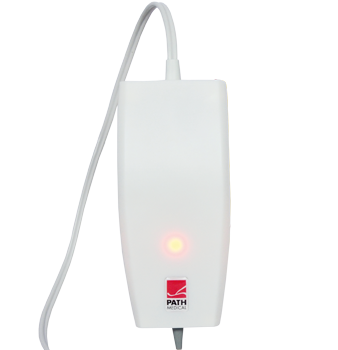

PATH Medical nanoTymp
Model: TU100948
Compact USB tympanometer with bilateral real-time preview and EMR-ready reporting
Key Features
- 226 Hz standard probe tone, 1000 Hz optional
- Ipsilateral reflexes at 500Hz/1kHz/2kHz/4kHz/BBN
- Real-time bilateral ear preview display
- Full-colour printouts and PDF/EMR export
- NOAH-compatible software
- Customisable test protocols
For export orders outside India, shipping/freight is quoted separately at actual cost — see our Shipping Policy.
Description
The PATH Medical nanoTymp is a compact tympanometer that connects to a PC via USB and runs on dedicated nanoTymp software, with NOAH module compatibility. It tests at a standard 226 Hz probe tone (1000 Hz available as an option) and measures ipsilateral reflexes at 500 Hz, 1 kHz, 2 kHz, 4 kHz and broadband noise. A real-time bilateral ear preview, full-colour printouts and PDF export for electronic medical records are included, along with a probe clip, lanyard, calibration cavities and ear tip kit.
Specifications
| Type | USB Tympanometer |
|---|---|
| Model | TU100948 |
| Probe Tone | 226 Hz standard, 1000 Hz optional |
| IPSI Reflex Frequencies | 500Hz, 1kHz, 2kHz, 4kHz, BBN |
| Connectivity | USB to PC |
| Manufacturer | PATH MEDICAL GmbH, Germany |
